Series:
Versions:
Height:
Calba 51 Width:
Calba 52 Width:
Electrical Resistance:
|
|
Calba
2 (Calba 51 and Calba 52)
from 785 to 1811 mm
from 450 to 1000 mm
from 500 to 750 mm
optional |
The comfort to hand capacity
Calba towel warmer radiators meet the most up-to-date demand for heating and furnishing. They are sturdy, light, and practical and they can be placed everywhere. Made by steel tubolar pipes, they give a high efficiency with low water contents.
Ideals for using in the bathroom and kitchen, also in such places as laundries, swimming pools and gyms.
Features
Calba comes in two models. The Calba 51 has straight horizontal tubes, and the Calba 52 has horizontal tubes that are rounded towards the outside.
Both models come in a range of different sizes so they match any installation needs. The tubes are round and the manifolds are semi-ovals.
|
Total Quality
Quality plays a leading role in all the aspects of Calba towel warmer.radiators. Everything, from the steel to the valves and fittings, is the best from the market and able to offer and undergo stringent tests before use.
The maximum operating pressure is 10 bar but each single radiator undergoes final testing at 13 atmosphere
The final finishing painting (WHITE RAL 9010) of radiators is realized into a most modern system in order to ensure perfect adhesion and bright stable colours.
8 anticorrosion treatments and a double painting (cathaphoresis + EPS) guarantee absolute qualities
all year around use.
Calba can be used also with an electrical resistance in order to be utilized when the central heating is off. |
| |
 |
|

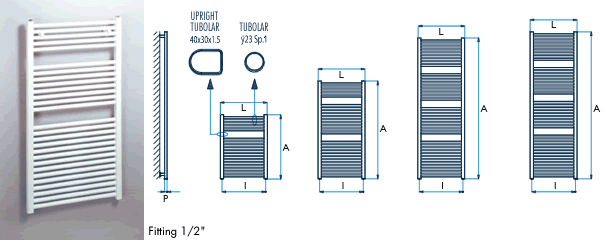

Calba 51
Technical data
|
CODE
|
HEIGHT
A
mm |
WIDTH
L
mm |
DEPTH
P
mm |
DISTANCE CENTRE
I
mm |
WEIGHT
kg |
WATER CONTENT
litres/section |
EMISSIONE
∆t 50° C
|
SECTION
|
| 510845 |
785 |
450 |
30 |
400 |
7,0 |
3,6 |
343 |
1,26 |
| 510850 |
785 |
500 |
30 |
450 |
7,6 |
3,9 |
380 |
1,26 |
| 510855 |
785 |
550 |
30 |
500 |
8,2 |
4,2 |
416 |
1,26 |
| 510860 |
785 |
600 |
30 |
550 |
8,8 |
4,5 |
453 |
1,26 |
| 510875 |
785 |
750 |
30 |
700 |
10,7 |
5,4 |
564 |
1,26 |
| 510899 |
785 |
1000 |
30 |
950 |
13,8 |
6,9 |
749 |
1,26 |
| 511245 |
1203 |
450 |
30 |
400 |
10,0 |
5,4 |
521 |
1,26 |
| 511250 |
1203 |
500 |
30 |
450 |
10,9 |
5,9 |
576 |
1,26 |
| 511255 |
1203 |
550 |
30 |
500 |
11,8 |
6,3 |
631 |
1,26 |
| 511260 |
1203 |
600 |
30 |
550 |
12,7 |
6,7 |
687 |
1,26 |
| 511275 |
1203 |
750 |
30 |
700 |
15,4 |
7,9 |
853 |
1,25 |
| 511299 |
1203 |
1000 |
30 |
950 |
20,0 |
10,3 |
1129 |
1,25 |
| 511545 |
1507 |
450 |
30 |
400 |
13,0 |
6,8 |
639 |
1,26 |
| 511550 |
1507 |
500 |
30 |
450 |
14,1 |
7,3 |
706 |
1,26 |
| 511555 |
1507 |
550 |
30 |
500 |
15,2 |
7,8 |
773 |
1,25 |
| 511560 |
1507 |
600 |
30 |
550 |
16,3 |
8,3 |
840 |
1,25 |
| 511575 |
1507 |
750 |
30 |
700 |
19,6 |
9,8 |
1040 |
1,25 |
| 511599 |
1507 |
1000 |
30 |
950 |
25,1 |
12,8 |
1375 |
1,24 |
| 511845 |
1811 |
450 |
30 |
400 |
15,4 |
8,3 |
795 |
1,26 |
| 511850 |
1811 |
500 |
30 |
450 |
16,8 |
8,9 |
877 |
1,25 |
| 511855 |
1811 |
550 |
30 |
500 |
18,2 |
9,6 |
958 |
1,25 |
| 511860 |
1811 |
600 |
30 |
550 |
19,6 |
10,2 |
1040 |
1,25 |
| 511875 |
1811 |
750 |
30 |
700 |
23,8 |
12,3 |
1284 |
1,24 |
|
511899 |
1811 |
1000 |
30 |
945 |
31,0 |
15,7 |
1691 |
1,23 |
In case of use of the type T connection (for the inserting of the resistance), the central distance is reduced by 65 milimeter.

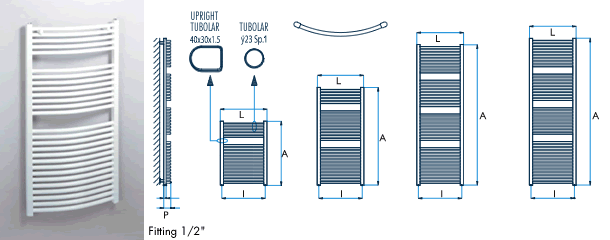

Calba 52
Technical data
|
CODE
|
HEIGHT
A
mm |
WIDTH
L
mm |
DISTANCE CENTRE
I
mm |
WEIGHT
kg |
WATER CONTENT
litres/section |
EMISSIONE
∆t 50° C
|
SECTION
|
| 520850 |
785 |
500 |
450 |
7,7 |
4,0 |
380 |
1,26 |
| 520860 |
785 |
600 |
550 |
8,9 |
4,6 |
453 |
1,26 |
| 520875 |
785 |
750 |
700 |
10,8 |
5,5 |
564 |
1,26 |
| 521250 |
1203 |
500 |
450 |
11,0 |
6,0 |
576 |
1,26 |
| 521260 |
1203 |
600 |
550 |
12,8 |
6,8 |
687 |
1,26 |
| 521275 |
1203 |
750 |
700 |
15,5 |
8,0 |
853 |
1,25 |
| 521550 |
1507 |
500 |
450 |
14,3 |
7,4 |
706 |
1,26 |
| 521560 |
1507 |
600 |
550 |
16,5 |
8,4 |
840 |
1,25 |
| 511575 |
1057 |
750 |
700 |
19,8 |
9,9 |
1040 |
1,25 |
| 521850 |
1811 |
500 |
450 |
17,0 |
9,1 |
877 |
1,25 |
| 521860 |
1811 |
600 |
550 |
19,8 |
10,5 |
1040 |
1,25 |
| 521875 |
1811 |
750 |
700 |
24,0 |
12,7 |
1284 |
1,24 |
In case of use of the type T connection (for the inserting of the resistance), the central distance is reduced by 65 milimeter.
 |
|
|
 |
