Series:
Models:
Colour:
Height:
Width:
Depth: |
|
Bianco Tema
16
RAL 9010
from 300 to 871 mm
multiples of 60 mm
from 60 to 287mm |
The Heating revolution
Tema born in 1972 and represents an extraordinary improvement in the cast iron radiators.thanks to its shape and front plate
Since its first step into market TEMA makes a revolution in the heating field. Radiators
are manufactured in a cast iron of high quality
and designed to assure a very high efficiency.
The most rational design that not only heads for the aesthetic one but to maximize the rendering of the radiators body marks the right equilibrium between radiating and convective emissions.
TEMA is protagonist into heating field, but at the same time knows how to camouflage itself with grace, its line is so much actual so moderate and elegant, so modern, that naturally adapts itself to every solution of furnishing. More than 30' years of everlasting success makes TEMA the heater more sold and copied in the world.
|
The radiator on measure
TEMA is supplied by preprinted white RAL 9010 (two hands to immersion), in standard batteries of 10 elements.
It is possible to have batteries of the desired width on demand.
More comfort concurs to reduce remarkably the job and the times of installation.
TEMA is tested in the factory before and after the working on hubs at 10,5 bar pressure, and suitable for working up to 7 bar. Biancotema comes pre-finished in RAL 9010 pure white colour and it is supplied pre-assembled in units of 10 sections.
Approved by the main European institutes, it answers to norms EN 442-1/A1, CE and NF. Biancotema are tested EN 442.
To guarantee for the customer, on each element the marks CE, NF and the IdealClima brand are stamped.
Batteries delivering in pallet on measures and adaptable for apartment ready for being installed in building site. |
|

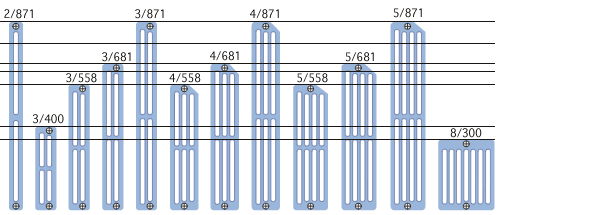

Quoted drawing
Technical data
|
TYPE
|
HEIGHT
mm |
DISTANCE CENTRE
mm |
DEPTH
mm |
WIDTH
mm |
DIAMETER
pollici |
WATER CONTENT
litres/section |
MASS
kg/section |
UNI-EN 442
∆t 50° C
W/section |
ESPON
N° |
N°
COLUMNS |
SUR
SECT
mq
|
|
TEMA
2-558 |
561 |
500 |
60 |
60 |
1" |
0,52 |
3,40 |
55,0 |
1,287 |
2 |
0,16 |
|
TEMA
2-681 |
683 |
623 |
60 |
60 |
1" |
0,58 |
3,90 |
64,5 |
1,286 |
2 |
0,20 |
|
TEMA
2-871 |
874 |
813 |
60 |
60 |
1" |
0,71 |
5,00 |
81,7 |
1,300 |
2 |
0,25
|
|
TEMA
3-400 |
402 |
342 |
94 |
60 |
1" |
0,52 |
3,78 |
55,8 |
1,327 |
3 |
0,15 |
|
TEMA
3-558 |
562 |
500 |
94 |
60 |
1" |
0,73 |
4,80 |
76,2 |
1,313 |
3 |
0,21 |
|
TEMA
3-640 |
642 |
581 |
94 |
60 |
1" |
0,75 |
5,30 |
84,8 |
1,308 |
3 |
0,25 |
|
TEMA
3-681 |
686 |
623 |
94 |
60 |
1" |
0,80 |
5,70 |
89,2 |
1,304 |
3 |
0,26 |
|
TEMA
3-790 |
793 |
731 |
94 |
60 |
1" |
0,90 |
6,50 |
101,0 |
1,296 |
3 |
0,30 |
|
TEMA
3-871 |
875 |
813 |
94 |
60 |
1" |
1,00 |
6,80 |
109,2 |
1,289 |
3 |
0,33 |
|
TEMA
4-558 |
565 |
500 |
128 |
60 |
1" |
0,82 |
5,80 |
93,4 |
1,299 |
4 |
0,27 |
|
TEMA
4-681 |
686 |
623 |
128 |
60 |
1" |
0,97 |
7,00 |
112,1 |
1,336 |
4 |
0,33 |
|
TEMA
4-871 |
875 |
813 |
128 |
60 |
1" |
1,21 |
8,62 |
137,5 |
1,331 |
4 |
0,42 |
|
TEMA
5-558 |
561 |
500 |
162 |
60 |
1" |
1,03 |
7,35 |
113,7 |
1,311 |
5 |
0,34 |
|
TEMA
5-681 |
686 |
623 |
162 |
60 |
1" |
1,18 |
9,00 |
136,1 |
1,321 |
5 |
0,40 |
|
TEMA
5-871 |
876 |
813 |
162 |
60 |
1" |
1,43 |
11,00 |
165,8 |
1,323 |
5 |
0,50 |
| TEMA
8-300 |
303 |
242 |
267 |
65 |
1" |
1,14 |
6,70 |
103,0 |
1,326 |
8 |
0,29 |
|
|
|
 |
